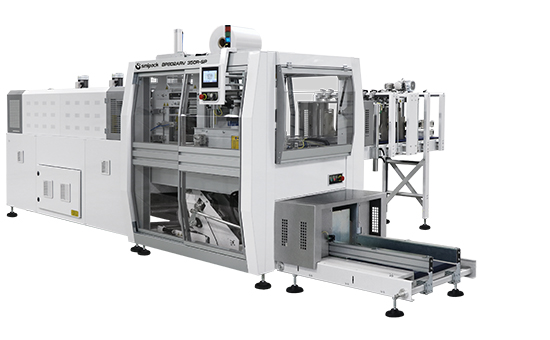

La serie BP de enfajadoras monobloque semiautomáticas y automáticas con barra soldadora hace de la versatilidad su principal característica. De hecho, dependiendo del modelo, esta línea de máquinas de envasado es particularmente adecuada para empaquetar en solo film o pad + film una amplia variedad de productos pertenecientes a diversos sectores de mercado.
Equipadas con entrada a 90° o en línea, sistema multi-empuje y tecnología de automatización de última generación, estas máquinas se integran perfecta y fácilmente en líneas de producción con empaquetado en film retráctil. La serie BP puede alcanzar producciones de hasta 25 paquetes/minuto.
SECTORES DE MERCADO
Industria de bebidas (leche, agua, refrescos, cerveza, vino, etc.), conservas (tomates, encurtidos, salsas, etc.) almazaras, harinas, granulados, refinerías de azúcar, aves (bandejas de huevos), gráficos, papelería, informática, artículos domésticos, aerosol, cosmética, farmacéutica, eléctricoelectrónica, plásticos, madera, papel, champús-detergentes, ingeniería, aceites lubricantes, fábricas de cajas, estanterías, logística, terceros.
Suministro eléctrico | 220 - 240 / 380 - 415 V |
3PH + PE / 3PH + N + PE | |
50/60 Hz | |
Potencia eléctrica | 33880 W |
Presión del aire | 6 Bar |
Aire requerido | 16,5 Nl/p* |
Producción máxima de hasta | 25 ppm** |
Altura máxima del paquete | 380 mm |
Barra soldadora | 760 mm |
Dimensiones máx. de la bobina film | 750 x Ø 350 mm |
Altura del plano de trabajo | 945 - 1105 mm |
Dimensiones de la máquina | 5260 x 4115 mm |
h 2105 - 2265 mm | |
Peso neto de la máquina | 1815 Kg |
Film aconsejado: LDPE | 20 - 100 µ |
(*) Normal litros por paquete.
(**) Paquetes por minuto. La velocidad indicada puede variar según las dimensiones del producto, el formato del paquete y el tipo de film utilizado.
